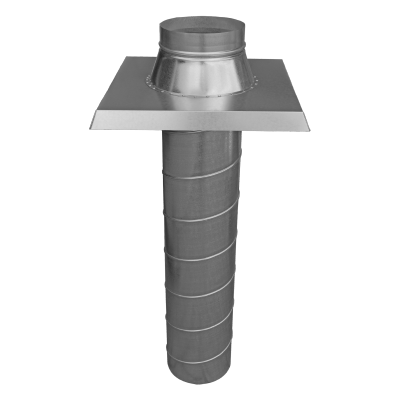

Material:

• galvanized steel.

Product characteristics:

• as a standard manufactured with male coupling end*;
• as an option - can be produced with VKPK flange or female coupling version;
• for the installation of the roof base on a pitched roof the use of a plate is required, which must be ordered separately to the set.

* male coupling height = H2.

øD [mm]	AxA [mm]	H1 [mm]	H2 [mm]	L [mm]	Packaging [pcs | type]
100	310	95	45	1000	10	P1
125	320	115	45	1000	9	P1
150	360	90	45	1000
160	380	95	45	1000	7	P1
200	430	135	70	1000	4	P1
250	490	145	70	1000
315	570	165	70	1000
355	605	180	70	1000
400	670	200	70	1000
500	800	215	70	1000
630*	960	260	70	1000

* VKPK flange connection.
